Boring >S-FSTUP_INCH >S-FSTUPL-081.8-C

Boring

S-FSTUP_INCH


S-FSTUPL-081.8-C EDP:382678

Product Information

  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.
  • Excellent vibration resistance due to light dimple head.
  • l/d is 3 to 6 times the diameter.
  • Chip disposal is improved by having two channels for chip evacuation.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length I

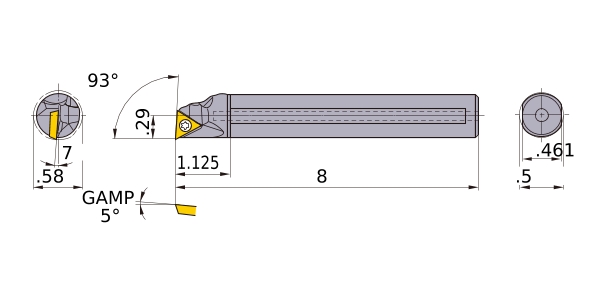

DMIN .58
DCON .5
KAPR 93°
LF 8
LDRED 1.125
WF .29
H .461
GAMF 7
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__1.81.5
2D Model (DXF)
CAD data name Download
S-FSTUPL-081_8-C
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-FSTUPL-081_8-C
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
