Boring >S-FSTUP_INCH >S-FSTUPL-122-C

Boring

S-FSTUP_INCH


S-FSTUPL-122-C EDP:382715

Product Information

  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.
  • Excellent vibration resistance due to light dimple head.
  • l/d is 3 to 6 times the diameter.
  • Chip disposal is improved by having two channels for chip evacuation.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock

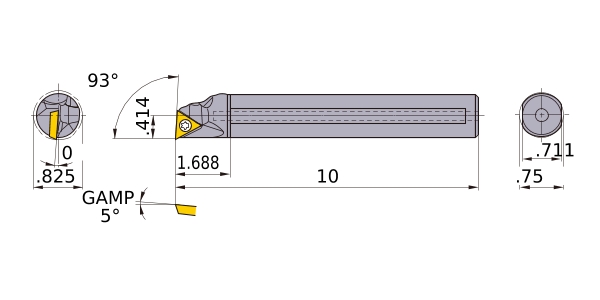

Unit of Length I
DMIN .825
DCON .75
KAPR 93°
LF 10
LDRED 1.688
WF .414
H .711
GAMF 0
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__22
2D Model (DXF)
CAD data name Download
S-FSTUPL-122-C
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-FSTUPL-122-C
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
