(Coolant Through Carbide Boring Bars)

E10R-SCLCL3 EDP:62025140

Product Information

  • Two wall pocket.
  • 7° and 11° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

The actual product may differ from the displayed image.

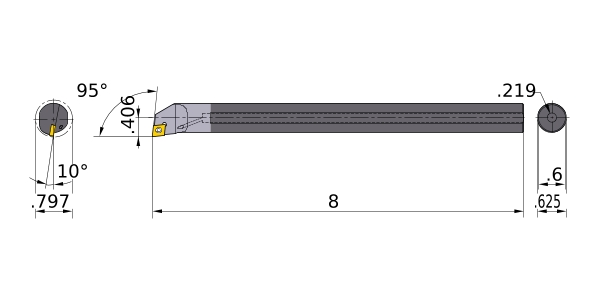

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Unit of Length I
DMIN .797
DCON .625
CNT .219
KAPR 95°
LF 8
WF .406
H .6
GAMF 10°
WT 1.2
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__32.5


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
