Boring

E-SCLP_C_INCH
(Coolant Through Carbide Boring Bars)

E06M-SCLPL2 EDP:62024815

Product Information

  • Two wall pocket.
  • 7° and 11° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

The actual product may differ from the displayed image.

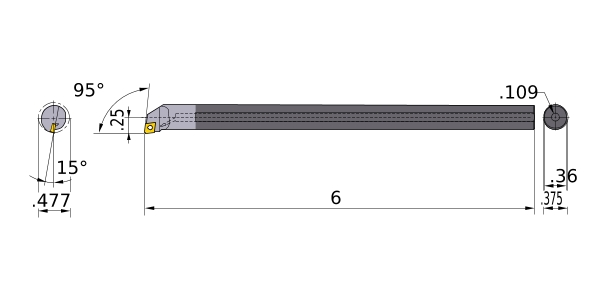

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI E06M-SCLPL2
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN .477
DCON .375
CNT .109
KAPR 95°
LF 6
WF .25
H .36
GAMF 15°
WT 0.31
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__21.5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
