Boring >E-SCLP_C_INCH >E08R-SCLPL2.5

Boring

E-SCLP_C_INCH
（Coolant Through Carbide Boring Bars）

E08R-SCLPL2.5 EDP:62025041

Product Information

  • Two wall pocket.
  • 7° and 11° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

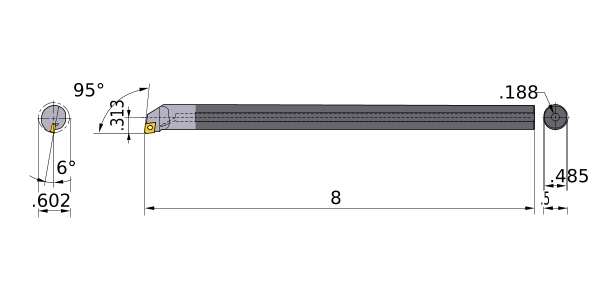

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI E08R-SCLPL2.5
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN .602
DCON .5
CNT .188
KAPR 95°
LF 8
WF .313
H .485
GAMF 6°
WT 0.71
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__2.51.5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Turning Insert

  • Spare Parts
