Boring >E-SWLO_C_INCH >E04H-SWLOL1.2


(Coolant Through Carbide Boring Bars)


Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

The actual product may differ from the displayed image.

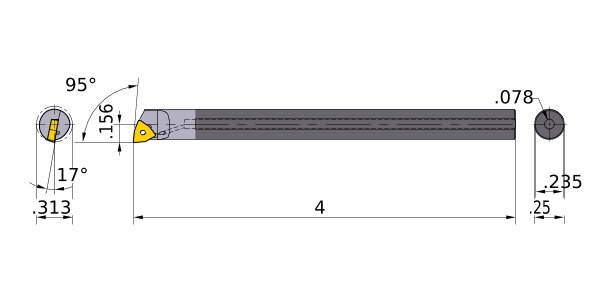

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Unit of Length I
DMIN .313
DCON .25
CNT .078
KAPR 95°
LF 4
WF .156
H .235
GAMF 17°
WT 0.11
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__1.21


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
