Boring >C_STUP_C_C >C10-08STUPR08-090-C

Boring

C_STUP_C_C
（Boring Bars ｆor Small Parts Machining）

C10-08STUPR08-090-C EDP:22979650

INCH Products
Shape Series Tooling Sheet Feature
C-SCLC_C_INCH
  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.
C-SDQC_C_INCH
  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.
C-STUC_C_INCH
  • 7° positive insert, low cutting force.
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.
  • Two wall pocket.
C-SWLO_C_INCH
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.
  • Two wall pocket.
  • 7° positive insert, low cutting force.
C-SWL_C_INCH
  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.

Product Information

  • with coolant thru
  • Screw-on type

The actual product may differ from the displayed image.

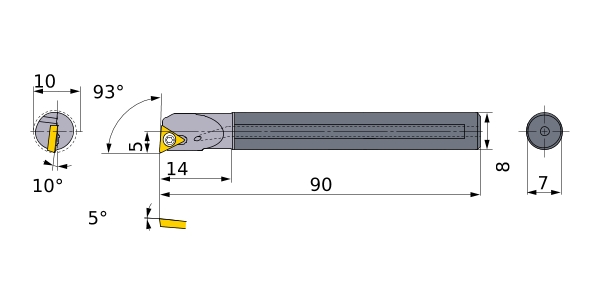

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M
DMIN 10
DCONMS 8
KAPR 93°
LF 90
LDRED 14
WF 5
H 7
GAMP 5°
GAMF 10°
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__0802
