Drills >TAW_INCH >TAWSN0061

Drills

TAW_INCH
(Solid Carbide Drill for Swiss-type Automatic & Small CNC Lathes WSTAR Drill Series)

TAWSN0061 EDP:299655

Product Information

  • Wavy cutting edge design for good chip control.
  • Serration geometry for accurate insert location.

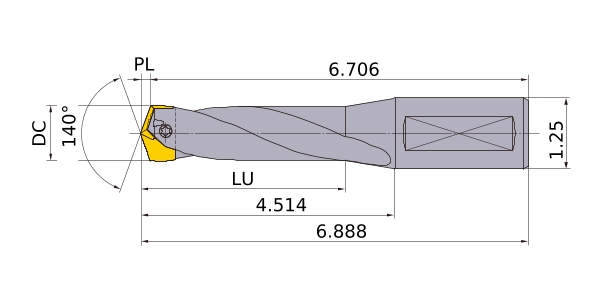

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length I
DCON 1.25
SIG 140°
LF 6.706
OAL 6.888
LH 4.514
LBX 3.569
ld 3
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
TAWSN0061
CAD

3D Detail Model (STP,STL)
CAD data name Download
TAWSN0061
CAD

3D Light Model (STP,STL)
CAD data name DC Download
TAWSN0061_ID0_9375
.9375 CAD
TAWSN0061_ID0_9531
.9531 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
