MWS00225XB EDP:388834

Product Information

  • For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Stock

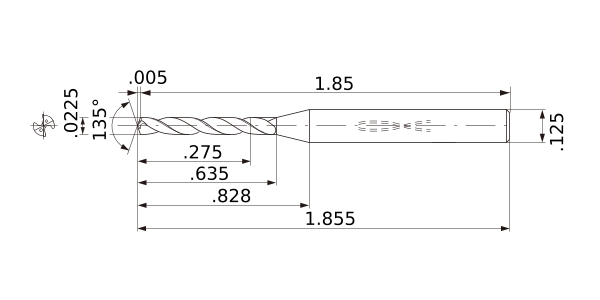

Unit of Length I
DC .0225
DCON .125
SIG 135°
LF 1.85
OAL 1.855
LH .828
LU .275
LCF .635
FHA 25°
ld 12
PL .005
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0004
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
3D Light Model (STP,STL)
CAD data name Download
MWS00225XB
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
