MWS00938XB EDP:348461

Product Information

  • For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.

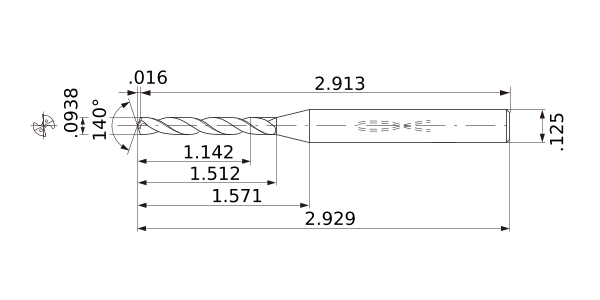

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Stock
Unit of Length I
DC .0938
DCON .125
SIG 140°
LF 2.913
OAL 2.929
LH 1.571
LU 1.142
LCF 1.512
FHA 30°
ld 12
PL .016
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0006
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MWS00938XB
CAD

3D Light Model (STP,STL)
CAD data name Download
MWS00938XB
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
