Drills >MVS >MVS0310X15S060

Drills

MVS
（WSTAR）

MVS0310X15S060 EDP:10555262

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

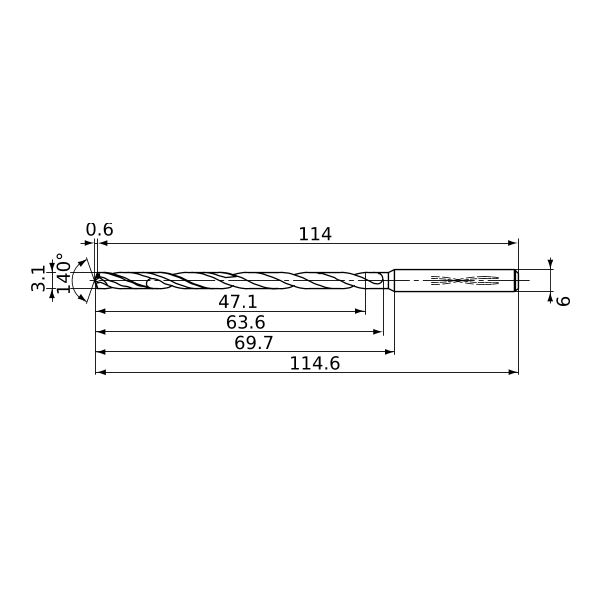

DC 3.1
DCON 6
SIG 140°
LF 114
OAL 114.6
LH 69.7
LU 47.1
LCF 63.6
FHA 27°
ld 15
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -0.025
Min. Cutting EdgeDiameter Tolerance -0.043
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0310X15S060
CAD
