Drills >MVS >MVS1300X15S140

Drills

MVS
（WSTAR）

MVS1300X15S140 EDP:10557112

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

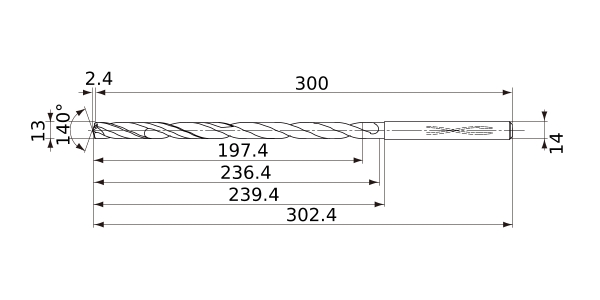

DC 13
DCON 14
SIG 140°
LF 300
OAL 302.4
LH 239.4
LU 197.4
LCF 236.4
FHA 27°
ld 15
PL 2.4
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -0.041
Min. Cutting EdgeDiameter Tolerance -0.068
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS1300X15S140
CAD
