MVE0357X02S060 EDP:662303

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

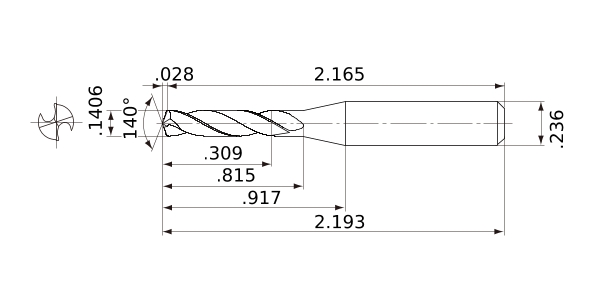

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .1406
DCON .236
SIG 140°
LF 2.165
OAL 2.193
LH .917
LU .309
LCF .815
FHA 30°
ld 2
PL .028
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0007
Type of Coolant External
