Drills >MVS_INCH >MVS1945X05S200

Drills

MVS_INCH
（WSTAR）

MVS1945X05S200 EDP:694276

Product Information

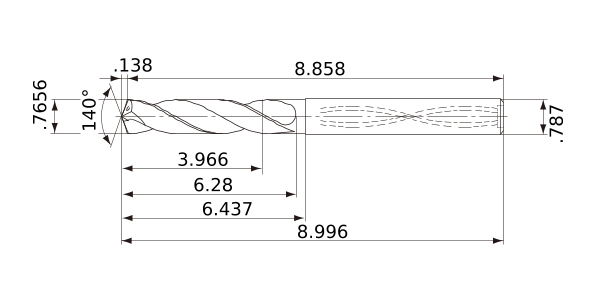

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .7656
DCON .787
SIG 140°
LF 8.858
OAL 8.996
LH 6.437
LU 3.966
LCF 6.28
FHA 30°
ld 5
PL .138
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0013
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS1945X05S200
