Drills >MVS_INCH >MVS0305X25S060

Drills

MVS_INCH
（WSTAR）

MVS0305X25S060 EDP:10544280

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

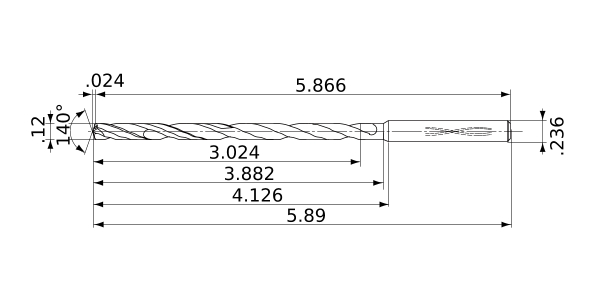

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .12
DCON .236
SIG 140°
LF 5.866
OAL 5.89
LH 4.126
LU 3.024
LCF 3.882
FHA 27°
ld 25
PL .024
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -.001
Min. Cutting EdgeDiameter Tolerance -.0017
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0305X25S060
CAD
