Drills >MVS_INCH >MVS0305X40S060

Drills

MVS_INCH
(WSTAR)

MVS0305X40S060 EDP:10546611

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I

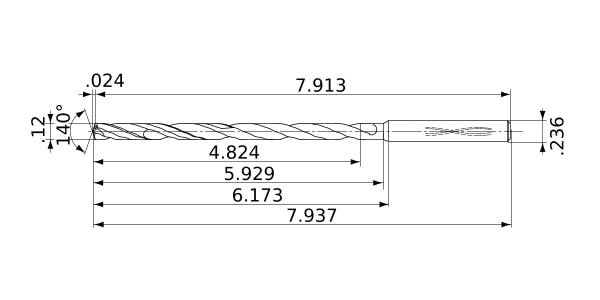

DC .12
DCON .236
SIG 140°
LF 7.913
OAL 7.937
LH 6.173
LU 4.824
LCF 5.929
FHA 27°
ld 40
PL .024
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -.001
Min. Cutting EdgeDiameter Tolerance -.0017
Type of Coolant Internal
3D Light Model (STP,STL)
CAD data name Download
MVS0305X40S060
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
