Solid End Mills >VF3XB >VF3XBR0050T0024L025

Solid End Mills

VF3XB
（Ball nose, Taper neck, 3 flute, For hardened materials）

VF3XBR0050T0024L025 EDP:450749

Product Information

  • 3 flute ball end mill, high rigidity taper neck type.

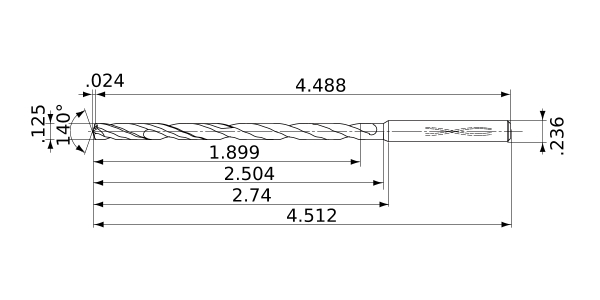

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M
DC 1
DCON 6
BD2 1.26
B2 4.6°
BHTA2 0.4°
BHTA3 20°
LF 70
LU 2.3
LB2 25
APMX 0.8
FHA 30°
RE 0.5
Peripheral effective cutting edge count: ZEFP 3
R Tolerance - -0.01
R Tolerance + 0.01
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
