Drills >MVS_INCH >MVS0843X25S100

Drills

MVS_INCH
（WSTAR）

MVS0843X25S100 EDP:10544501

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

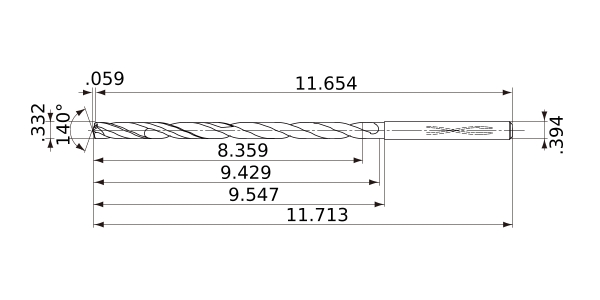

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .332
DCON .394
SIG 140°
LF 11.654
OAL 11.713
LH 9.547
LU 8.359
LCF 9.429
FHA 27°
ld 25
PL .059
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -.013
Min. Cutting EdgeDiameter Tolerance -.0022
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0843X25S100
CAD
