Drills >MVS_INCH >MVS0873X35S100

Drills

MVS_INCH
（WSTAR）

MVS0873X35S100 EDP:10546567

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

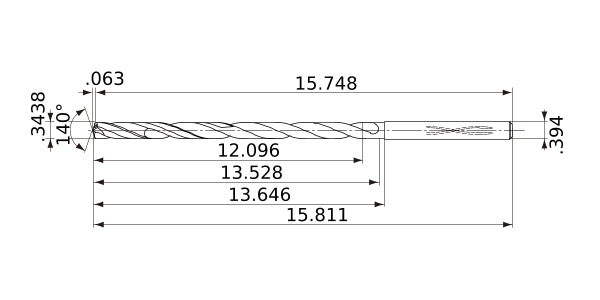

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .3438
DCON .394
SIG 140°
LF 15.748
OAL 15.811
LH 13.646
LU 12.096
LCF 13.528
FHA 27°
ld 35
PL .063
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -.013
Min. Cutting EdgeDiameter Tolerance -.0022
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0873X35S100
