MVS_INCH
(WSTAR)
The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | DP1020 |
Sales unit | 1 |
Stock | |
Unit of Length | I |

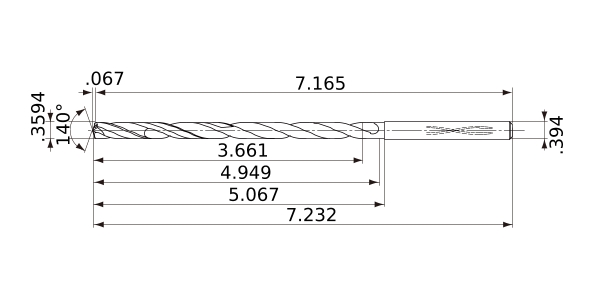

DC | .3594 |
DCON | .394 |
SIG | 140° |
LF | 7.165 |
OAL | 7.232 |
LH | 5.067 |
LU | 3.661 |
LCF | 4.949 |
FHA | 27° |
ld | 10 |
PL | .067 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | -.013 |
Min. Cutting EdgeDiameter Tolerance | -.0022 |
Type of Coolant | Internal |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
