Drills >MVS_INCH >MVS1032X15S120

Drills

MVS_INCH
（WSTAR）

MVS1032X15S120 EDP:10543795

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.

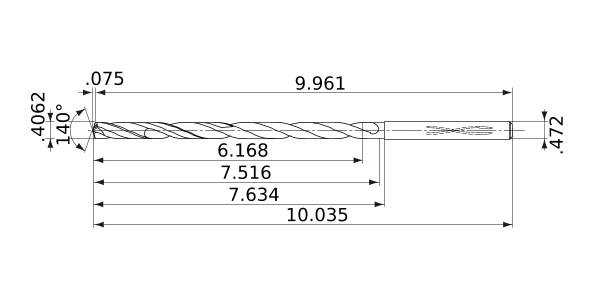

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .4062
DCON .472
SIG 140°
LF 9.961
OAL 10.035
LH 7.634
LU 6.168
LCF 7.516
FHA 27°
ld 15
PL .075
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -.017
Min. Cutting EdgeDiameter Tolerance -.0027
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS1032X15S120
CAD
