Drills >MMS_INCH >MMS0476X5D060

Drills

MMS_INCH
（WSTAR）

MMS0476X5D060 EDP:601834

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP7020
Sales unit 1
Stock

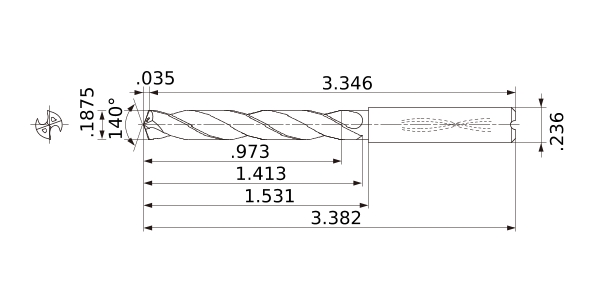

Unit of Length I
DC .1875
DCON .236
SIG 140°
LF 3.346
OAL 3.382
LH 1.531
LU .973
LCF 1.413
FHA 30°
ld 5
PL .035
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0007
Type of Coolant Internal
