Drills >MMS_INCH >MMS0714X5D080

Drills

MMS_INCH
(WSTAR)

MMS0714X5D080 EDP:601906

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

The actual product may differ from the displayed image.

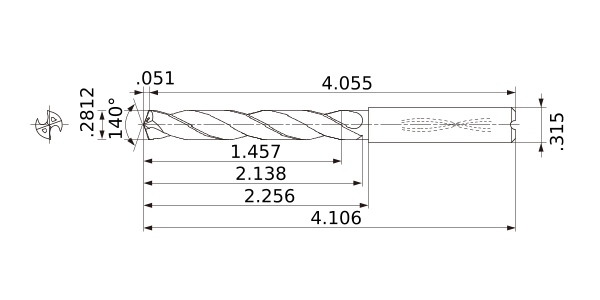

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP7020
Sales unit 1
Stock
Unit of Length I
DC .2812
DCON .315
SIG 140°
LF 4.055
OAL 4.106
LH 2.256
LU 1.457
LCF 2.138
FHA 30°
ld 5
PL .051
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0009
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MMS0714X5D080
CAD

3D Light Model (STP,STL)
CAD data name Download
MMS0714X5D080
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
