（WSTAR）

MMS1032X5D120 EDP:602001

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP7020
Sales unit 1
Stock
Unit of Length I

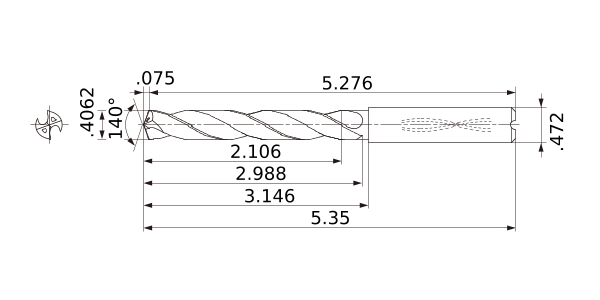

DC .4062
DCON .472
SIG 140°
LF 5.276
OAL 5.35
LH 3.146
LU 2.106
LCF 2.988
FHA 30°
ld 5
PL .075
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0011
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MMS1032X5D120
CAD
