Drills >MMS_INCH >MMS1984X3D200



MMS1984X3D200 EDP:601762

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

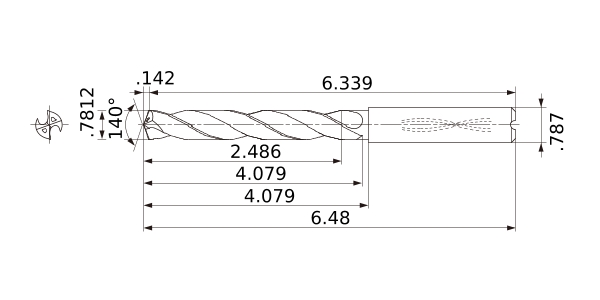

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP7020
Sales unit 1
Unit of Length I
DC .7812
DCON .787
SIG 140°
LF 6.339
OAL 6.48
LH 4.079
LU 2.486
LCF 4.079
FHA 30°
ld 3
PL .142
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0013
Type of Coolant Internal
2D Model (DXF)
CAD data name Download

3D Light Model (STP,STL)
CAD data name Download


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
