Drills >MVX_INCH >MVX1375X5C150

Drills

MVX_INCH


MVX1375X5C150 EDP:837337

Product Information

  • Ideal combination of outer CVD insert and inner PVD insert.
  • High rigidity body that enabled L/D=6 deep hole machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

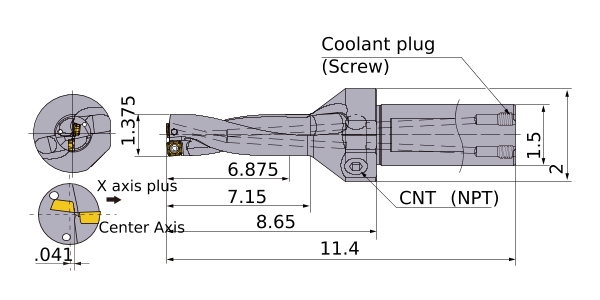

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DC 1.375
DCON 1.5
DCSFMS 2
OAL 11.4
LPR 8.65
LU 6.875
S10 .041
LBX 7.15
ld 5
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Effective Cutting Edge 1
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVX1375X5C150
CAD
