Drills >MICRO-MVS_INCH >MVS0109X02S030

Drills

MICRO-MVS_INCH
（WSTAR）

MVS0109X02S030 EDP:10531549

Product Information

  • Straight cutting edge profile improves both chip evacuation and cutting edge strength.
  • Double margin offers excellent straightness and high precision.
  • MVS-X02- = Drill for guide hole Dimensions = 0+0.00055, Hole depth=2DC

The actual product may differ from the displayed image.

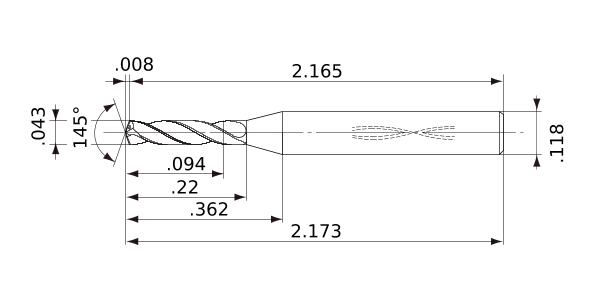

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .043
DCON .118
SIG 145°
LF 2.165
OAL 2.173
LH .362
LU .094
LCF .22
FHA 30°
ld 2
PL .008
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0006
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
