Drills >STAW_INCH >STAWSN0028

Drills

STAW_INCH
（Small Diameter Indexable Drill）

STAWSN0028 EDP:10530641

Product Information

  • Wavy cutting edge design for good chip control.
  • Highly rigid clamping system offers stability and reliability for small hole drilling.

The actual product may differ from the displayed image.

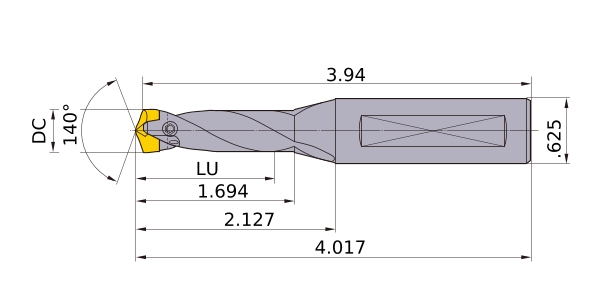

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DCON .625
SIG 140°
LF 3.94
OAL 4.017
LH 2.127
LBX 1.694
ld 3
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
STAWSN0028
