Drills >STAW_INCH >STAWLN0046

Drills

STAW_INCH
（Small Diameter Indexable Drill）

STAWLN0046 EDP:10531013

Product Information

  • Wavy cutting edge design for good chip control.
  • Highly rigid clamping system offers stability and reliability for small hole drilling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

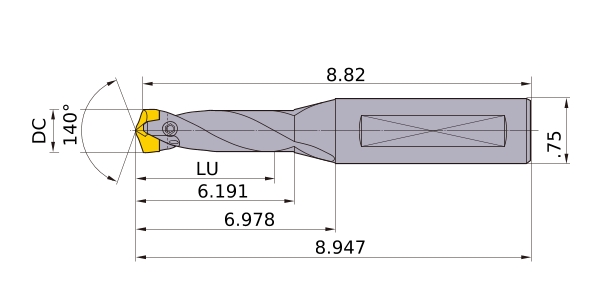

Unit of Length I
DCON .75
SIG 140°
LF 8.82
OAL 8.947
LH 6.978
LBX 6.191
ld 8
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
STAWLN0046
