Drills >PILOT-MVS >MVS0920X02S100PL

Drills

PILOT-MVS
（WSTAR）

MVS0920X02S100PL EDP:10556047

Product Information

  • Straight cutting edge profile improves both chip evacuation and cutting edge strength.
  • Double margin offers excellent straightness and high precision.

The actual product may differ from the displayed image.

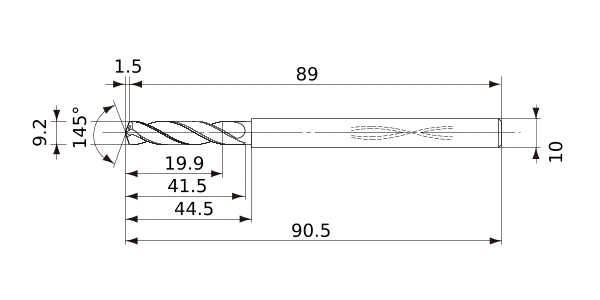

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M
DC 9.2
DCON 10
SIG 145°
LF 89
OAL 90.5
LH 44.5
LU 19.9
LCF 41.5
FHA 27°
ld 2
PL 1.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0920X02S100PL
CAD
