Drills >MFE_INCH >MFE0404X02S060

Drills

MFE_INCH
(Solid Carbide Flat Bottom Drills)

MFE0404X02S060 EDP:10562482

Product Information

  • High efficiency drilling in various types of machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock

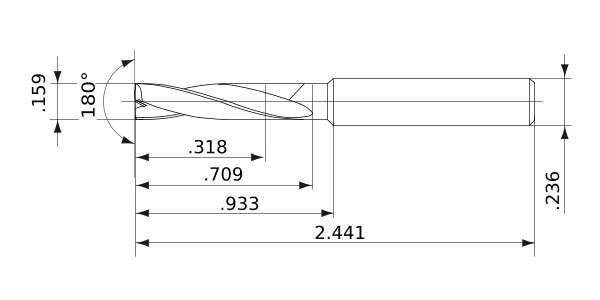

Unit of Length I
DC .159
DCON .236
SIG 180°
OAL 2.441
LH .933
LU .318
LCF .709
FHA 20°
ld 2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0005
Type of Coolant External
2D Model (DXF)
CAD data name Download
MFE0404X02S060
CAD

3D Light Model (STP,STL)
CAD data name Download
MFE0404X02S060
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
