Drills >MFE_INCH >MFE0653X02S080

Drills

MFE_INCH
(Solid Carbide Flat Bottom Drills)

MFE0653X02S080 EDP:10562550

Product Information

  • High efficiency drilling in various types of machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock

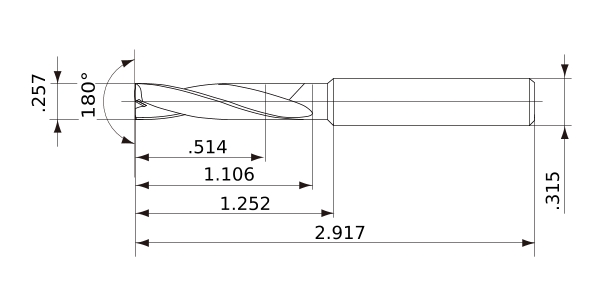

Unit of Length I
DC .257
DCON .315
SIG 180°
OAL 2.917
LH 1.252
LU .514
LCF 1.106
FHA 20°
ld 2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0006
Type of Coolant External
2D Model (DXF)
CAD data name Download
MFE0653X02S080
CAD

3D Light Model (STP,STL)
CAD data name Download
MFE0653X02S080
CAD
