Drills >MFE_INCH >MFE0935X02S100

Drills

MFE_INCH
(Solid Carbide Flat Bottom Drills)

MFE0935X02S100 EDP:10562642

Product Information

  • High efficiency drilling in various types of machining.

The actual product may differ from the displayed image.

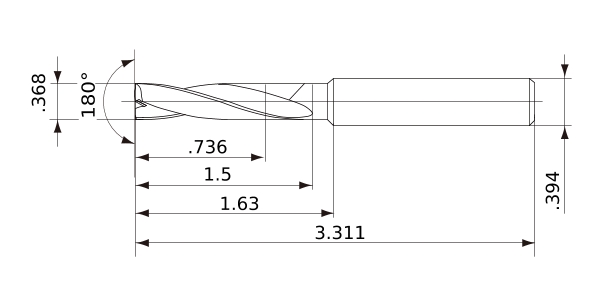

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .368
DCON .394
SIG 180°
OAL 3.311
LH 1.63
LU .736
LCF 1.5
FHA 20°
ld 2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0006
Type of Coolant External
2D Model (DXF)
CAD data name Download
MFE0935X02S100
CAD

3D Light Model (STP,STL)
CAD data name Download
MFE0935X02S100
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
