DSAS
（Solid Carbide Drill for Machining Heat Resistant Alloys）

DSAS1180X03S120 EDP:10636510

Product Information

  • TRI-Cooling Technology
  • Straight Cutting Edge with Single-Pass Honing
  • New Grade for Machining of Heat Resistant Alloys DP9020
  • Special Margin

The actual product may differ from the displayed image.
For details, please check the dimensions below.

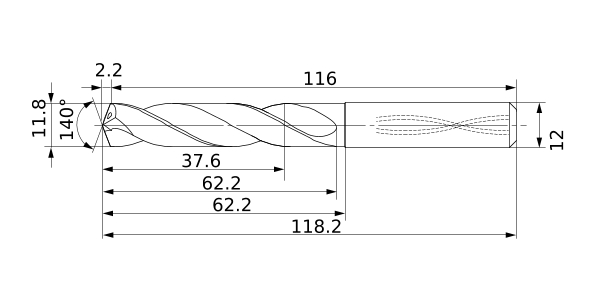

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP9020
Sales unit 1
Stock
Unit of Length M
DC 11.8
DCON 12
SIG 140°
LF 116
OAL 118.2
LH 62.2
LU 37.6
LCF 62.2
FHA 28°
ld 3
PL 2.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
DSAS1180X03S120
CAD
