Drills >DSAE >DSAE0610X03S080

Drills

DSAE
（SOLID CARBIDE DRILL WITH INTERNAL COOLANT）

DSAE0610X03S080 EDP:10605028

Product Information

  • STRAIGHT CUTTING EDGE WITH DEDICATED HONING
  • DP9020 GRADE FOR MACHINING HEAT RESISTANT ALLOYS
  • SPECIAL MARGIN

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP9020
Sales unit 1
Stock
Unit of Length M

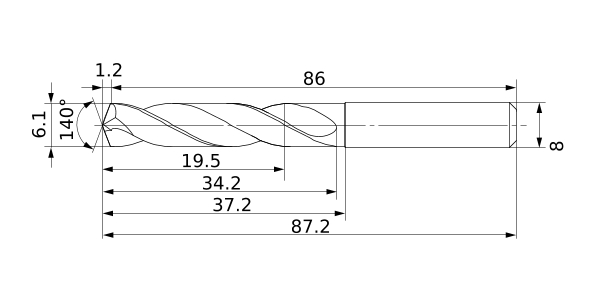

DC 6.1
DCON 8
SIG 140°
LF 86
OAL 87.2
LH 37.2
LU 19.5
LCF 34.2
FHA 28°
ld 3
PL 1.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant External
