Indexable End Mills

AJX_INCH
（MULTI FUNCTIONAL MILLING）

AJXU14R323WA24S EDP:241269

Product Information

  • Economical due to the use of 3 cutting edges.
  • High rigidity due to the employment of double clamp mechanics.
  • Suitable for high feed cutting.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

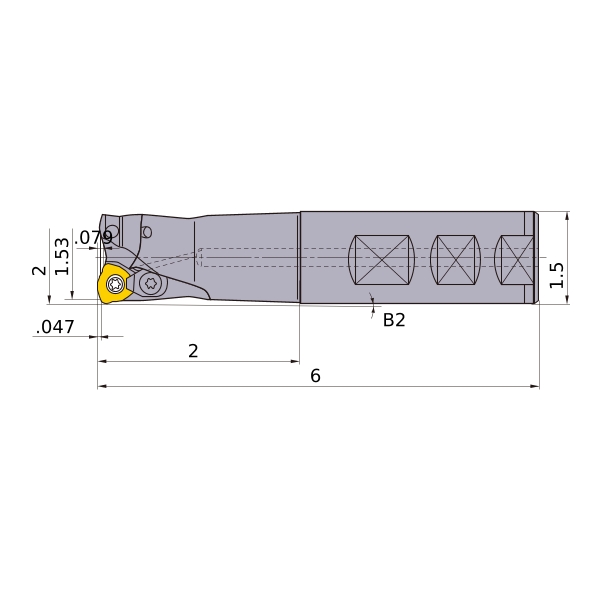

AZ .079
DC 1.53
DCX 2
DCON 1.5
RMPX 4.2
LF 6
LH 2
APMX .047
GAMP +8°
GAMF -4°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
AJXU14R323WA24S
CAD
