Indexable End Mills

AJX_INCH
（MULTI FUNCTIONAL MILLING）

AJXU08R163AM1235 EDP:10532997

Product Information

  • Economical due to the use of 3 cutting edges.
  • High rigidity due to the employment of double clamp mechanics.
  • Suitable for high feed cutting.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

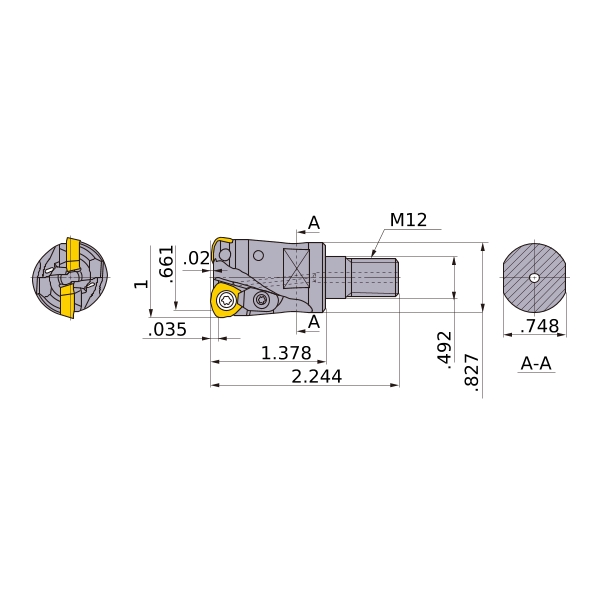

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .02
DC .661
DCX 1
DCON .492
DCSFMS .827
LF 1.378
OAL 2.244
S10 .748
APMX .035
GAMP +4°
GAMF -6°
WT 0.2
CRKS M12
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
