Indexable End Mills

APX3000_INCH


APX3000UR102SA10SB EDP:351290

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
APX3000 Square (With Center Hole)
  • Standard
  • Long
  • Extra Long
  • Screw in
  • High accuracy, high quality vertical wall.
 Indexable
APX3000_LONG Square (With Center Hole Long Cut Length)
  • Long cutting edge
  • High accuracy, high quality vertical wall.
 Indexable
APX3000_SHELL_MM Square (With Center Hole Long Cut Length)
  • Shell
  • High accuracy, high quality vertical wall.
 Indexable

Product Information

  • High accuracy, high quality vertical wall.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

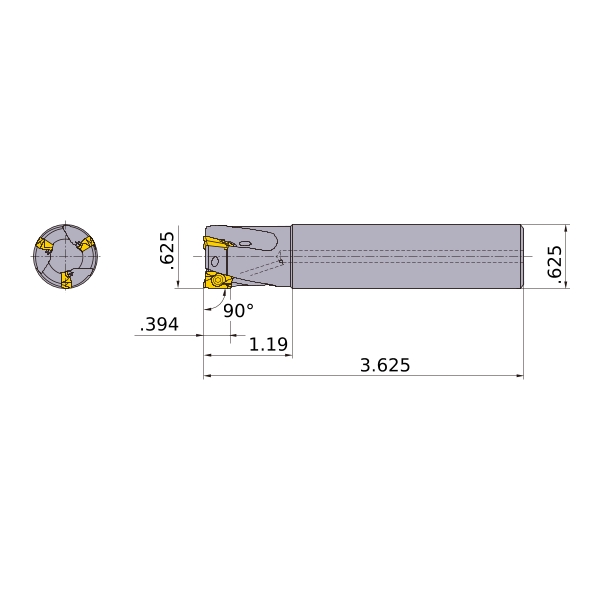

Unit of Length I
DC .625
DCON .625
KAPR 90°
RMPX 11.5
LF 3.625
LH 1.19
APMX .394
GAMP +12°
GAMF +22°
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
