Indexable End Mills

APX3000_INCH


APX3000UR163AM12A35 EDP:10533109

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
APX3000 Square (With Center Hole)
  • Standard
  • Long
  • Extra Long
  • Screw in
  • High accuracy, high quality vertical wall.
Indexable
APX3000_LONG Square (With Center Hole Long Cut Length)
  • Long cutting edge
  • High accuracy, high quality vertical wall.
Indexable
APX3000_SHELL_MM Square (With Center Hole Long Cut Length)
  • Shell
  • High accuracy, high quality vertical wall.
Indexable

Product Information

  • High accuracy, high quality vertical wall.

The actual product may differ from the displayed image.

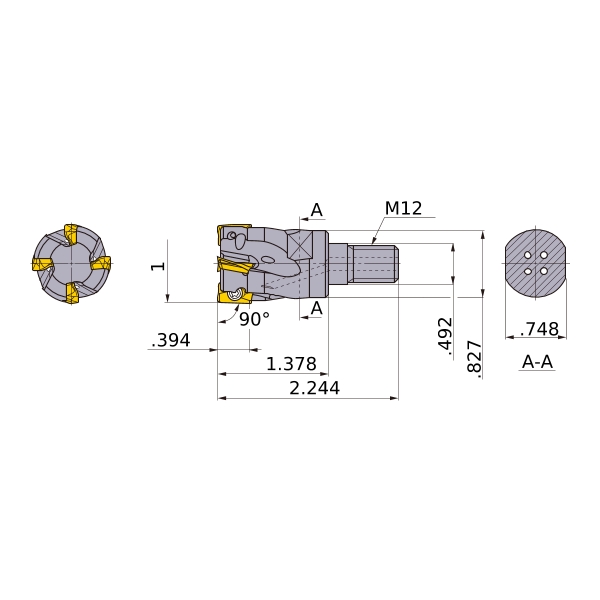

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1
DCON .492
DCSFMS .827
KAPR 90°
LF 1.378
OAL 2.244
S10 .748
APMX .394
GAMP +18°
GAMF +24°
WT 0.4
CRKS M12
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
APX3000UR163AM12A35
CAD

3D Detail Model (STP,STL)
CAD data name Download
APX3000UR163AM12A35
CAD

3D Light Model (STP,STL)
CAD data name RE Download
APX3000UR163AM12A35_IR0_008
.008 CAD
APX3000UR163AM12A35_IR0_016
.016 CAD
APX3000UR163AM12A35_IR0_031
.031 CAD CAD
APX3000UR163AM12A35_IR0_039
.039 CAD
APX3000UR163AM12A35_IR0_047
.047 CAD
APX3000UR163AM12A35_IR0_063
.063 CAD
APX3000UR163AM12A35_IR0_079
.079 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
