Indexable End Mills

APX3000_INCH


APX3000UR225AM16A40 EDP:10533147

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
APX3000 Square (With Center Hole)
  • Standard
  • Long
  • Extra Long
  • Screw in
  • High accuracy, high quality vertical wall.
 Indexable
APX3000_LONG Square (With Center Hole)
  • Long cutting edge
  • High accuracy, high quality vertical wall.
 Indexable
APX3000_SHELL_MM Square (With Center Hole)
  • Shell
  • High accuracy, high quality vertical wall.
 Indexable

Product Information

  • High accuracy, high quality vertical wall.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

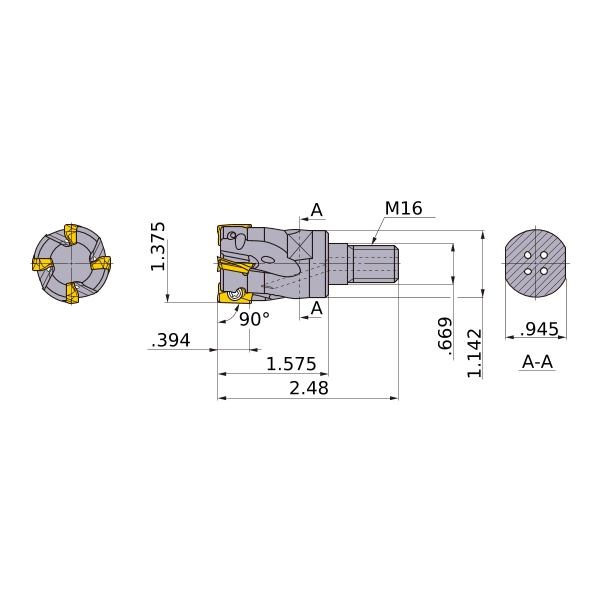

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.375
DCON .669
DCSFMS 1.142
KAPR 90°
LF 1.575
OAL 2.48
S10 .945
APMX .394
GAMP +21°
GAMF +25°
WT 0.7
CRKS M16
Cutting item count: CICT 5
Peripheral effective cutting edge count: ZEFP 5
2D Model (DXF)
CAD data name Download
APX3000UR225AM16A40
CAD
