Mitsubishi Materials Web Catalog | Products Information | End Mills | AQX_INCH

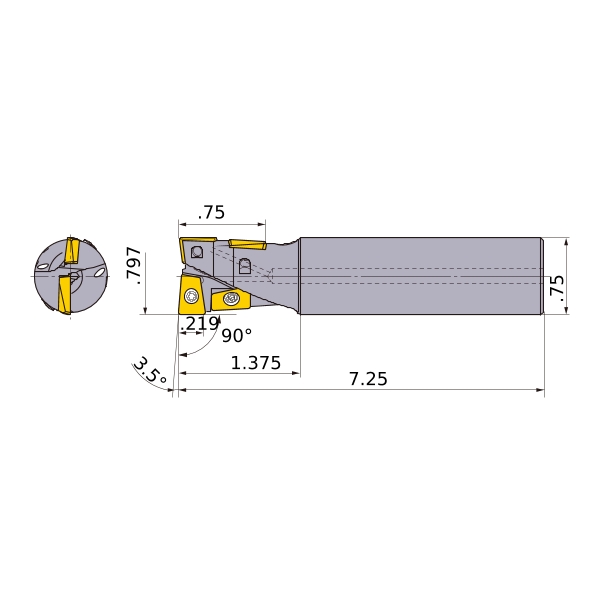

Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Sales unit

1

Hand

R

Stock

Unit of Length

I

A3

.219

DC

.797

DCON

.75

KAPR

90°

LF

7.25

LH

1.375

APMX

.75

Cutting item count: CICT

4

Peripheral effective cutting edge count: ZEFP

2

2D Model (DXF)
CAD data name	Download
