End Mills >ASX400_INCH >ASX400R202W20

End Mills

ASX400_INCH
(GENERAL CUTTING)

ASX400R202W20 EDP:250173

Product Information

  • Economical due to the use of 4 cutting edges.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I

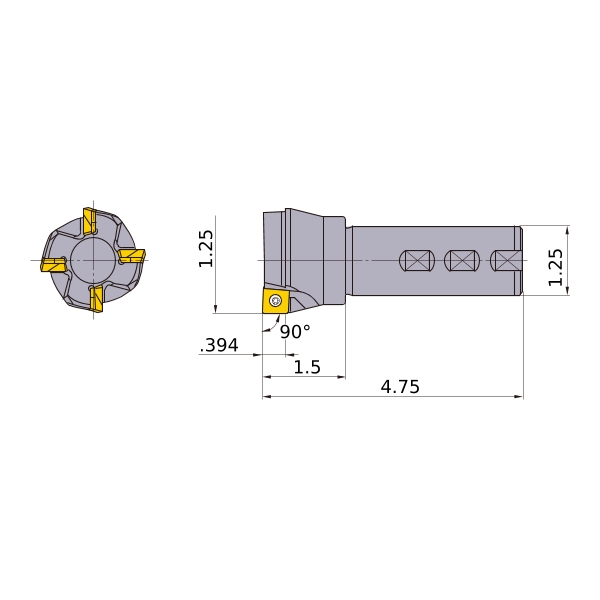

DC 1.25
DCON 1.25
KAPR 90°
LF 4.75
LH 1.5
APMX .394
GAMP +11°
GAMF -12°
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
2D Model (DXF)
CAD data name Download
ASX400R202W20
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX400R202W20
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX400R202W20_IR0_031
.031 CAD CAD
ASX400R202W20_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
