End Mills >BRP_INCH >BRP3UNR101LW10

End Mills

BRP3_INCH


BRP3UNR101LW10 EDP:166641

Product Information

  • A wide variety of sizes.
  • Max.depth of cut 5.5mm.
  • 11°positive insert.
  • Round shape insert gives strong cutting edge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

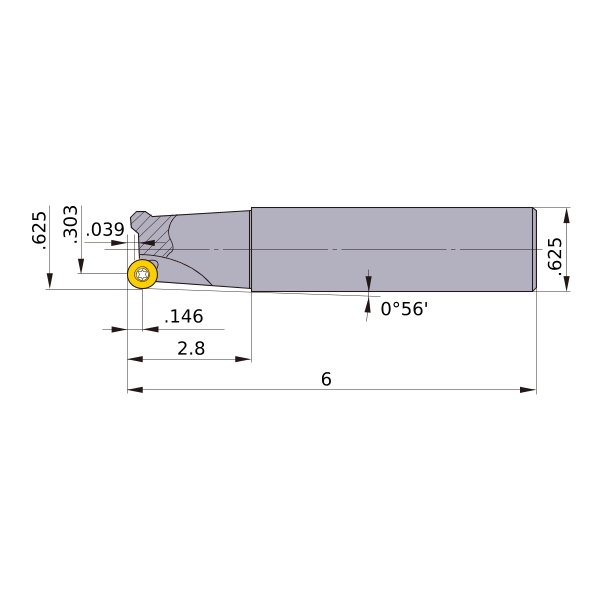

Unit of Length I
AZ .039
DC .303
DCX .625
DCON .625
B2 0°56'
LF 6
LH 2.8
APMX .146
GAMP -7°
GAMF -4°
RE .156
Cutting item count: CICT 1
2D Model (DXF)
CAD data name Download
BRP3UNR101LW10
