Indexable End Mills

BRP6_INCH


BRP6UPR202ELS20 EDP:126931

Product Information

  • A wide variety of sizes.
  • Max.depth of cut 5.5mm.
  • 11°positive insert.
  • Round shape insert gives strong cutting edge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

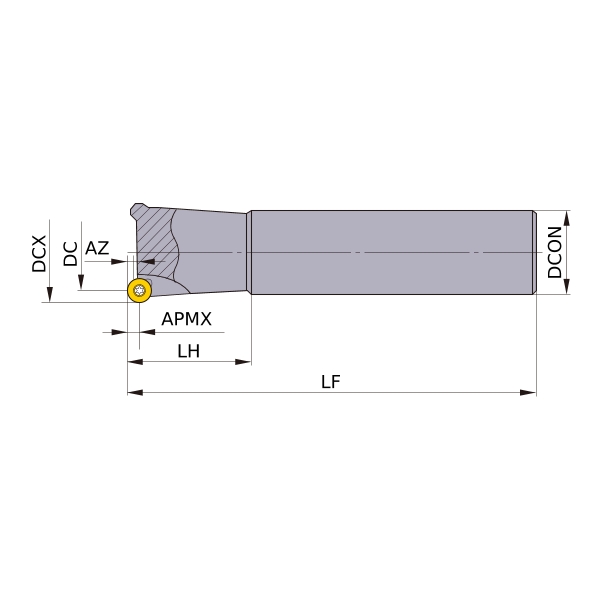

Unit of Length I

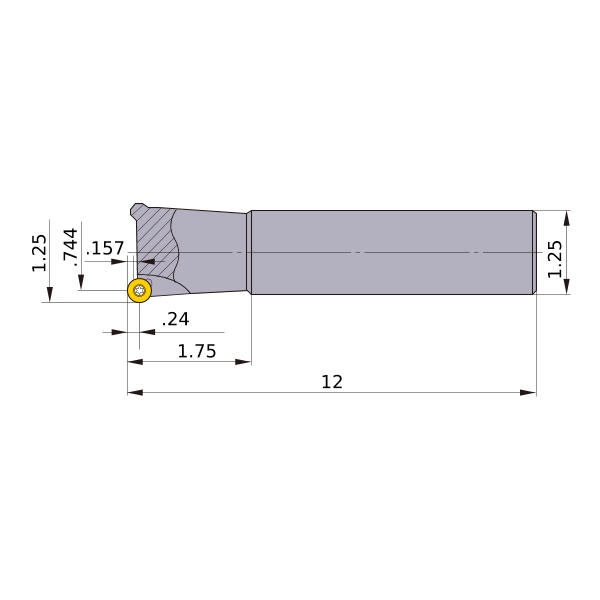

AZ .157
DC .744
DCX 1.25
DCON 1.25
LF 12
LH 1.75
APMX .24
GAMP +2°
GAMF -3°
RE .25
Cutting item count: CICT 2
