End Mills >BRP_INCH >BRP3UNR101W10

End Mills


BRP3UNR101W10 EDP:166633

Product Information

  • A wide variety of sizes.
  • Max.depth of cut 5.5mm.
  • 11°positive insert.
  • Round shape insert gives strong cutting edge.

The actual product may differ from the displayed image.

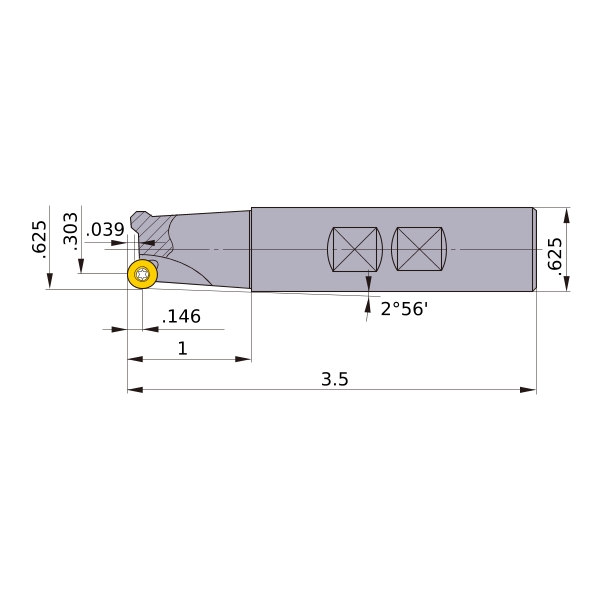

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Unit of Length I
AZ .039
DC .303
DCX .625
DCON .625
B2 2°56'
LF 3.5
LH 1
APMX .146
GAMP -7°
GAMF -4°
RE .156
Cutting item count: CICT 1
2D Model (DXF)
CAD data name Download

3D Detail Model (STP,STL)
CAD data name Download

3D Light Model (STP,STL)
CAD data name DC Download
.313 CAD CAD


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
