Indexable End Mills

BRP4_INCH


BRP4UNR162ELW16 EDP:166748

Product Information

  • A wide variety of sizes.
  • Max.depth of cut 5.5mm.
  • 11°positive insert.
  • Round shape insert gives strong cutting edge.

The actual product may differ from the displayed image.

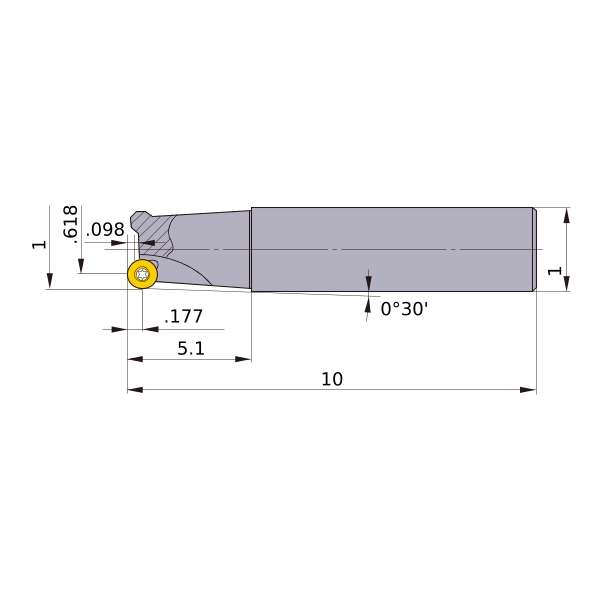

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .098
DC .618
DCX 1
DCON 1
B2 0°30'
LF 10
LH 5.1
APMX .177
GAMP -5°
GAMF 0°
RE .187
Cutting item count: CICT 2
