End Mills >BRP_INCH >BRP7UPR323ELS20

End Mills

BRP7_INCH


BRP7UPR323ELS20 EDP:139782

Product Information

  • A wide variety of sizes.
  • Max.depth of cut 5.5mm.
  • 11°positive insert.
  • Round shape insert gives strong cutting edge.

The actual product may differ from the displayed image.

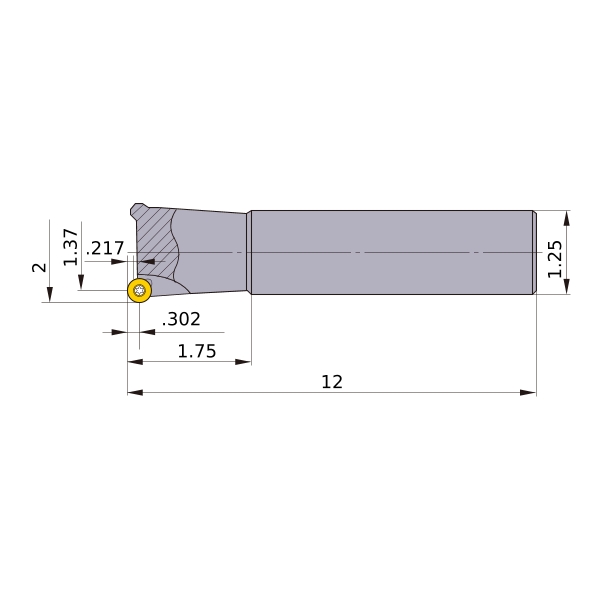

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .217
DC 1.37
DCX 2
DCON 1.25
LF 12
LH 1.75
APMX .302
GAMP +5°
GAMF -3°
RE .312
Cutting item count: CICT 3
2D Model (DXF)
CAD data name Download
BRP7UPR323ELS20
