Indexable End Mills

BXD4000_INCH
（ALUMINUM ALLOY FOR DIFFICULT-TO-CUT MATERIAL CUTTING）

BXD4000R202SA20SB EDP:237454

Product Information

  • Air coolant through.
  • Low resistance inserts & high rigidity body.
  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.

The actual product may differ from the displayed image.

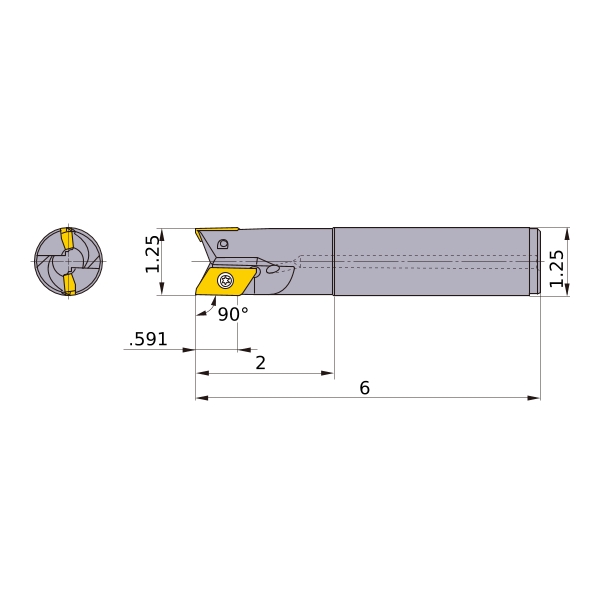

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.25
DCON 1.25
KAPR 90°
RMPX 13
LF 6
LH 2
APMX .591
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 33000
