Indexable End Mills

CFSP_INCH


CFSPR203W20 EDP:100667

Product Information

  • Excellent sharpness with 11° positive inserts.
  • 45°chamfer series.

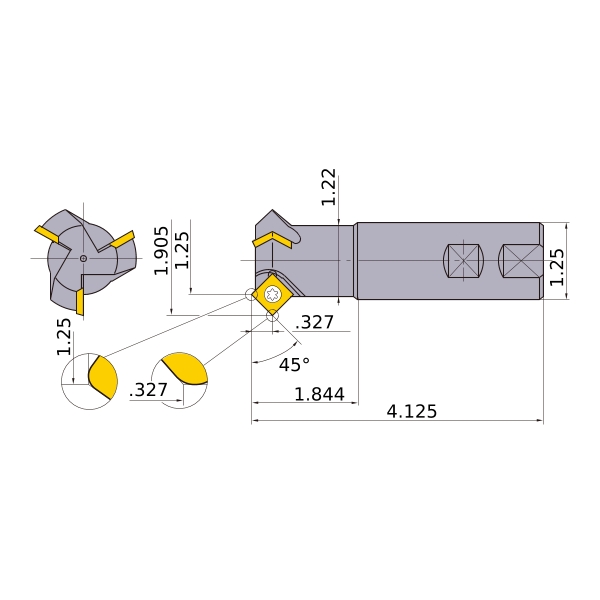

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.25
DCX 1.905
DCON 1.25
BD 1.22
KAPR 45°
LF 4.125
LH 1.844
APMX .327
Cutting item count: CICT 3
