Indexable End Mills

SRM2_INCH


SRM212SAS2 EDP:252734

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
SRM2 Ball Nose Type
  • Standard
  • Extra Long
  • Screw in
  • Long Neck
  • Long cutting edge
  • Through coolant hole type.
  • Suitable for roughing to semi-finishing of small and medium molds.
  • Low resistance inserts.
  • High rigidity body design.
 Indexable
SRM2_40-50 Ball Nose Type
  • Standard
  • Long
  • Extra Long
  • Through coolant hole type.
  • Suitable for roughing to semi-finishing of small and medium molds.
  • High rigidity body design.
 Indexable

Product Information

  • High rigidity body design.
  • Low resistance chipbreaker.
  • Key type clamp.
  • Shrink fit ready.
  • Air coolant through.
  • Suitable for roughing to semi-finishing of small and medium molds.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

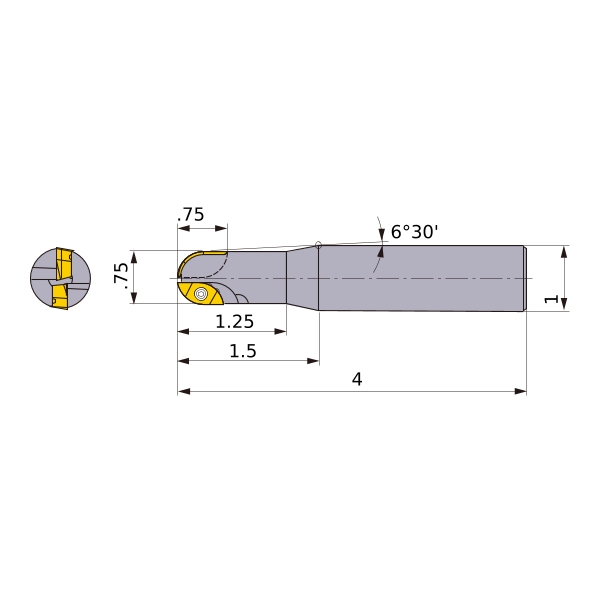

Unit of Length I
DC .75
DCON 1
B2 6°30'
LF 4
LH 1.5
LU 1.25
APMX .75
RE .375
Cutting item count: CICT 2
